View

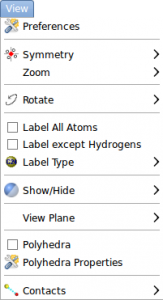

The sub-menu View is shown on the left.

It allows:

Preferences

Symmetry

Zoom

Rotate

Label All Atoms

Label except Hydrogens

Label Type

Show/Hide

View Plane

Polyhedra

Polyhedra Properties

Contacts

Preferences

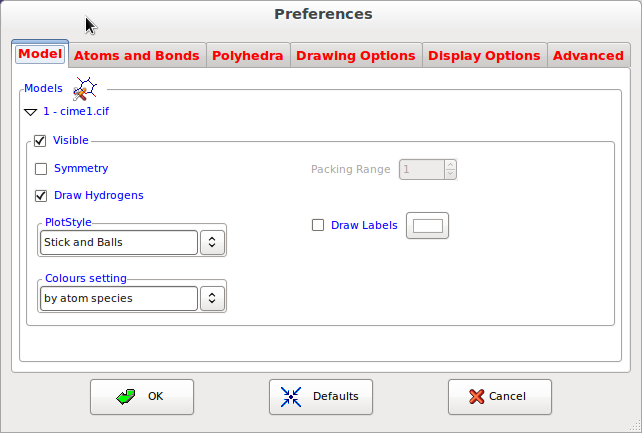

Some details about models are reported. The following window shows what modifications con be applied to the model.

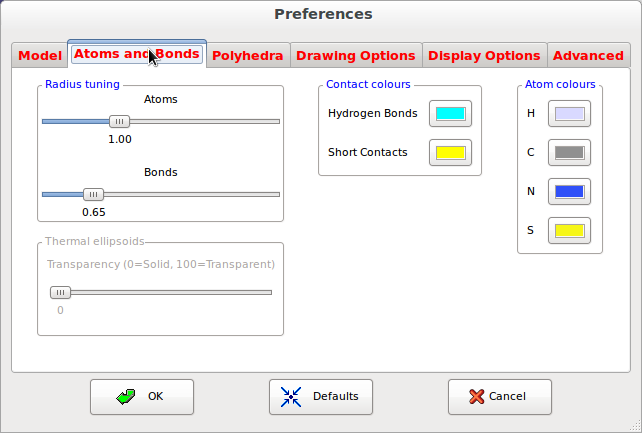

In order to get a better view of a model it is possible to tune the radius of the spheres representing the atoms and the radius of the cylinders representing the bonds. The atom colors can be modified.

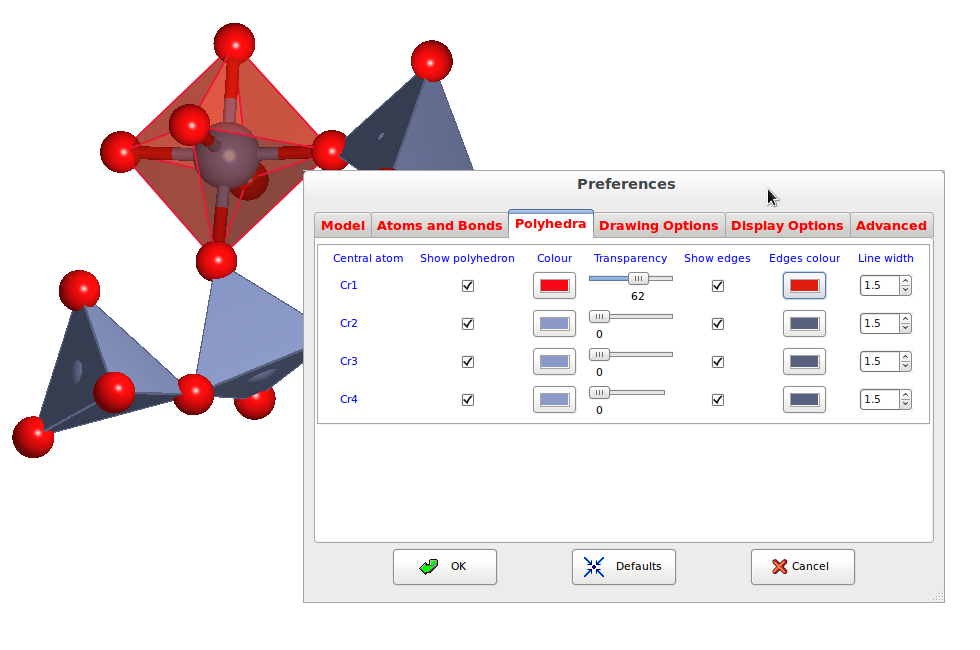

Polyhedra Properties

This window provides some tools to set the properties of the polyhedra; it is possible to visualize or to hide some of them, it is possible to change the colors and the transparency, to show or to hide the edges etc.

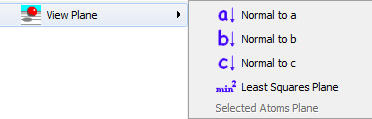

View plane

Set the preferred view plane.
