View

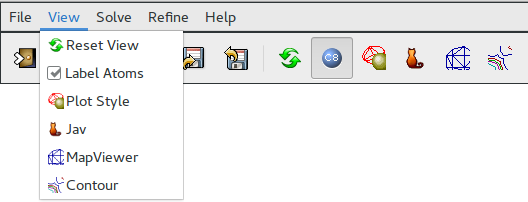

Sub-menu View:



These features are directly accessible trought the toolbar

It allows:

   Reset View

  Label atoms

   Plot Style

   Jav

   Map Viewer

   Contour

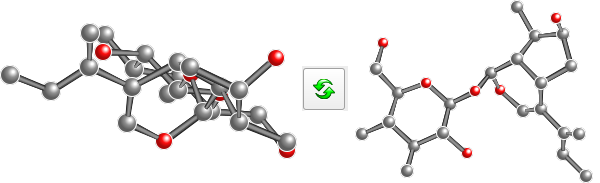

Reset


The structure is projected on LSQ plane and rescaled in order to fit the drawing area.

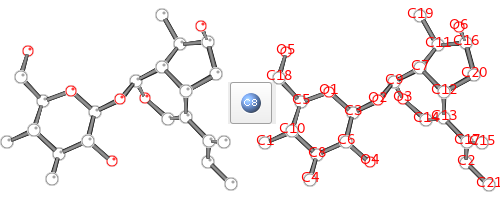

Labels



Show/Hide atom labels.

Jav


The Jav interface is started. For details see the help on-line of Jav.

Plot style


The user can select the preferred representation for all or for selected atomic species. The possible plot styles are: Sticks, Rods, Simple, Sticks & Balls, Bubbles, Shading, Van der Waals, Ellipsoids, Polyhedra. The effect is checked in the
Preview area. It is possible also to draw atoms using different radius.

Map Viewer

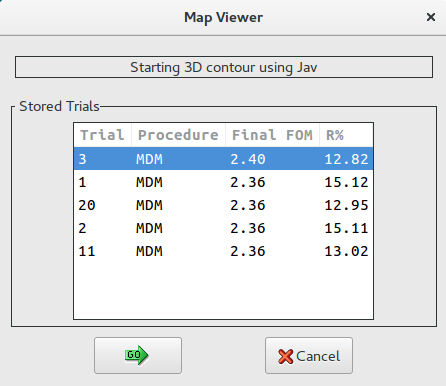

Start Jav on the map computed using the phases related to the selected trial. If a model is available, it will be included in the plot.  For details see the help on-line of Jav.

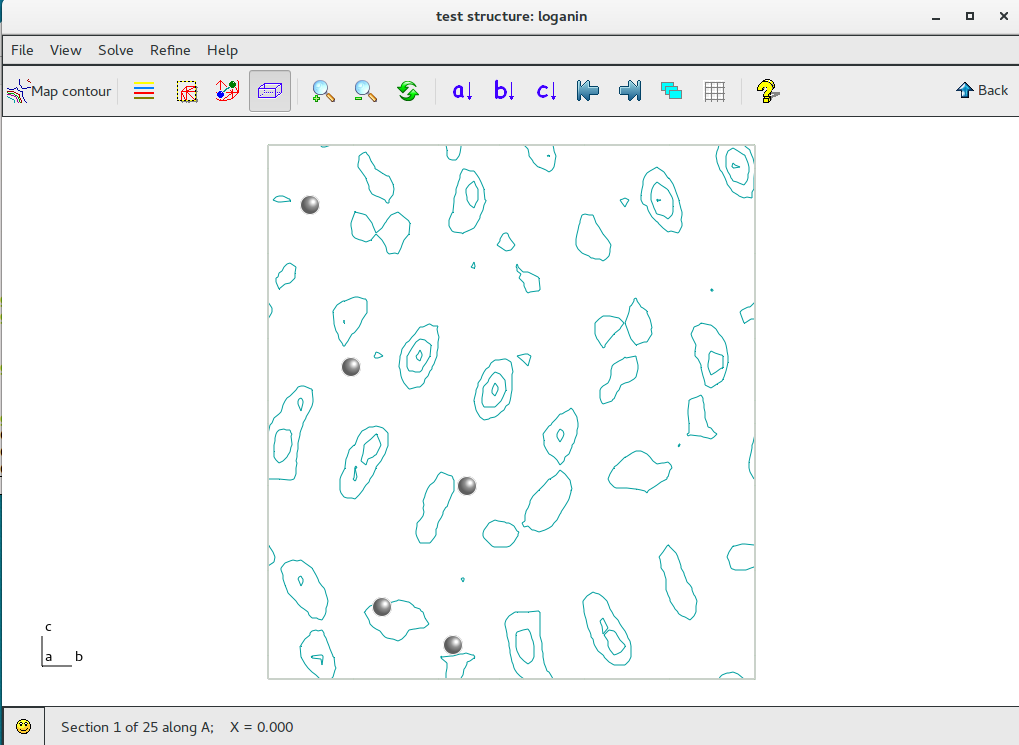

Contour

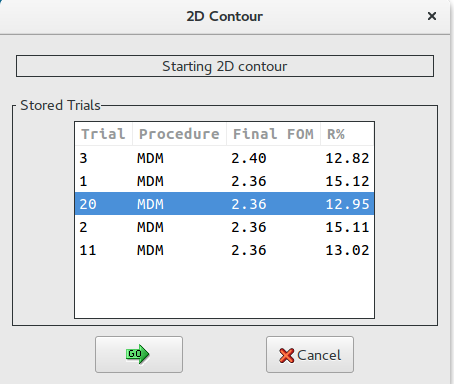

Start the 2D contour procedure on the map computed using the phases related to the selected trial.

Different possibilities are accessible using the icons on the toolbar:

     Manage contouring levels

     Set limit & graphic resolution

     Show / Hide atomic model

      Show / Hide unit cell

       Magnify / un-magnify the plot

     Let the plot fit the drawing window.

           Project plot on the plane normal to a, b, c

       Plot previous / next section(s)

     Plot more than one section per time

     Plot more than one section per time

     Credits

     Leave 2D contour interface
